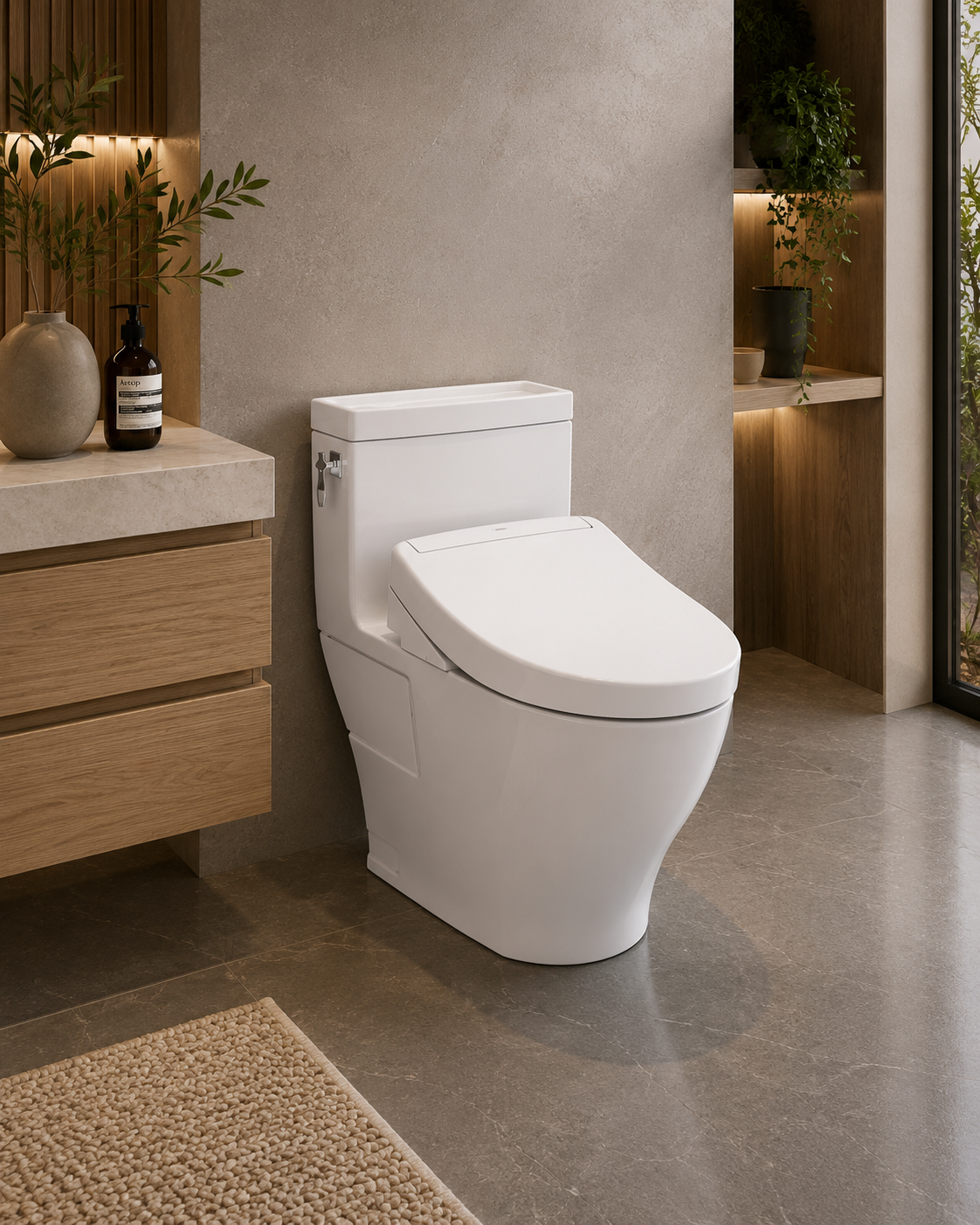

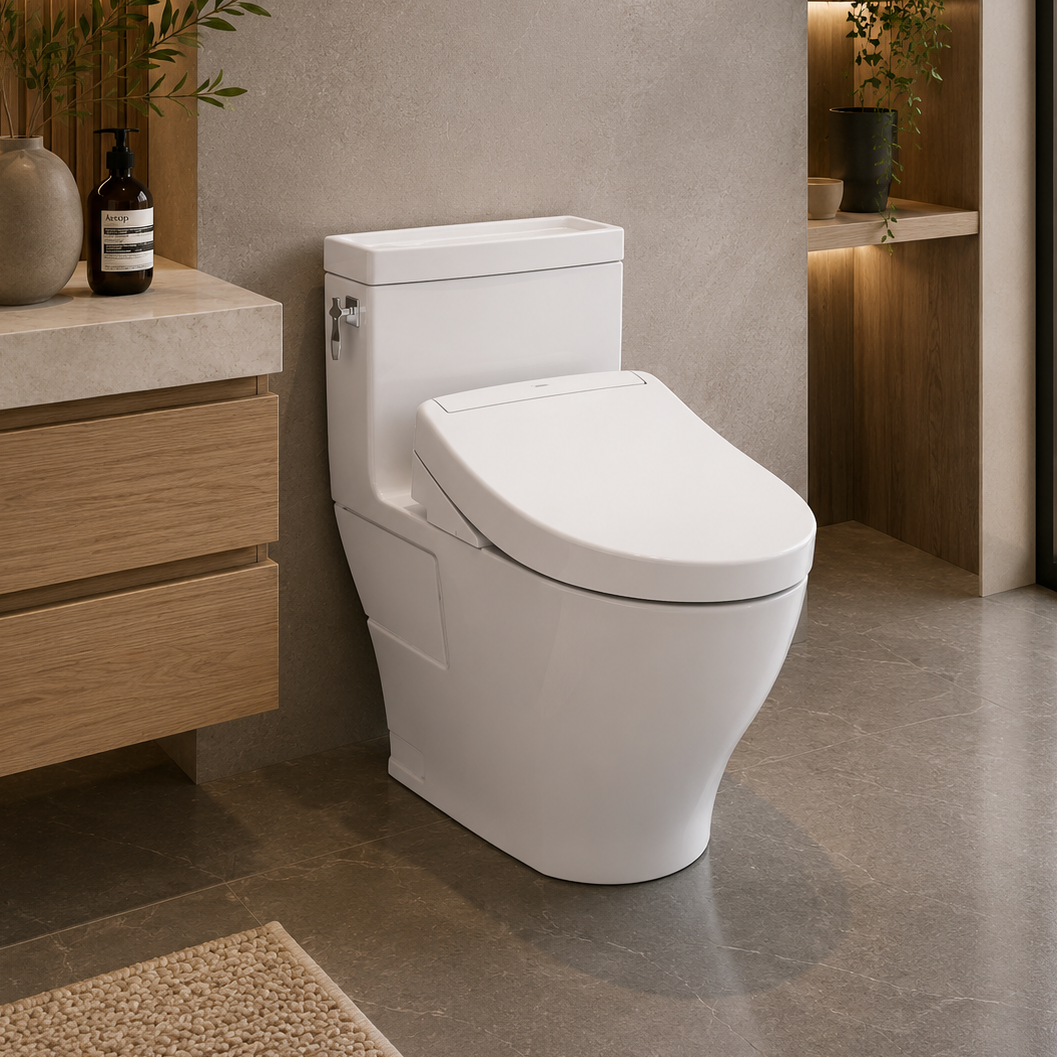

Toto Aimes Washlet+ S5 One-Piece Toilet

Description

TOTO Aimes WASHLET+ S5 One-Piece Toilet

Sculptural one-piece design with advanced S5 cleansing comfort

The TOTO Aimes WASHLET+ S5 One-Piece Toilet pairs the bold, architectural look of the Aimes toilet with the everyday comfort and hygiene of the S5 WASHLET. Its WASHLET+ design conceals the power cord and water supply hose for a cleaner installed appearance, while TOTO’s 1.28 GPF TORNADO FLUSH, CEFIONTECT glaze, PREMIST, EWATER+ wand cleaning, heated seat, warm air dryer, deodorizer, and night light help create a bathroom experience that feels cleaner, more comfortable, and easier to maintain.

Seamless WASHLET+ Integration

• WASHLET+ system conceals the WASHLET power cord and water supply hose for a cleaner installed look
• One-piece toilet design creates a smooth, integrated appearance
• Completely skirted design reduces hard-to-clean curves and crevices
• Elongated front bowl for added comfort
• Universal Height design for a more comfortable seated position
• Chrome-plated trip lever included

Powerful 1.28 GPF Flushing

• High-efficiency TORNADO FLUSH system uses 1.28 gallons per flush
• Powerful circular rinse helps wash the bowl effectively with every flush
• CEFIONTECT ceramic glaze helps minimize waste from sticking to the ceramic surface
• Skirted exterior makes the toilet easier to wipe down
• EPA WaterSense certified for efficient performance

S5 Washing & Drying Comfort

• Instantaneous warm-water cleansing for consistent comfort
• Front, rear, and rear-soft wash options
• Adjustable spray position, water temperature, and water pressure
• Oscillating and pulsating spray settings for a more complete cleanse
• Heated SoftClose seat with adjustable temperature
• Warm air dryer with adjustable temperature
• Automatic air deodorizer helps keep the bathroom feeling fresher
• Multifunction remote control with personalized memory settings for up to 4 users

Hygiene Features Before & After Every Use

• PREMIST automatically mists the bowl before each use to help reduce waste adhesion
• EWATER+ automatically cleans the wand after every use
• Self-cleaning wand rinses itself inside and out before and after every use
• CLEAN RESIN helps keep the wand and seat cleaner and easier to maintain
• Night light illuminates the inside of the bowl for easier nighttime use

Everyday Convenience

• SoftClose seat helps prevent slamming
• Docking station makes the WASHLET easier to remove for cleaning and maintenance
• Remote control keeps wash, dry, seat temperature, and user settings easy to access
• Low-profile S5 WASHLET design pairs cleanly with the Aimes one-piece toilet

Specs & Installation Notes

• Model / SKU: MW6263446CEFG#01
• Includes: Aimes one-piece elongated toilet with CEFIONTECT and WASHLET+ S5
• Toilet model: CST626CEFGAT40
• WASHLET model: SW3446
• Installation: Floor mount, one-piece toilet
• Bowl shape: Elongated
• Height: Universal Height
• Approx. overall dimensions: 29 3/16" L x 17 5/16" W x 27 15/16" H
• Seat height: 17 5/8"
• Rough-in: 12" Unifit rough-in; optional 10" and 14" Unifit rough-in options available separately
• Water use: 1.28 GPF
• Flush system: TORNADO FLUSH
• Water surface: 7 3/4" x 9 3/8"
• Trap diameter: 2 1/8"
• Trap seal: 2 1/8"
• Material: Vitreous china
• Finish: Cotton White
• Shipping dimensions: Toilet: 30" L x 19" W x 29 5/8" H1 x 18 1/2" H2; WASHLET: 24 3/8" L x 17 9/16" W x 7 7/16" H
• Shipping weight: Toilet: 119 lbs; WASHLET: 15.4 lbs
• Certifications / compliance: IAPMO/cUPC, EPA WaterSense, State of Massachusetts, City of Los Angeles, UPC, IPC, NSPC, NPC Canada, California AB715, California Green Building Code, and City of Los Angeles Water Efficiency Ordinance
• ADA note: ADA compliant for residential use when installed with the trip lever located on the approach side
• Warranty: One-year limited warranty
• Electrical note: Requires a 120V, 15A GFCI outlet for the WASHLET; power cord is approximately 4 feet long with a 3-prong plug
• Installation note: For back-to-back toilet installations, TOTO recommends a nationally listed double sanitary tee-wye in vertical waste stacks.
