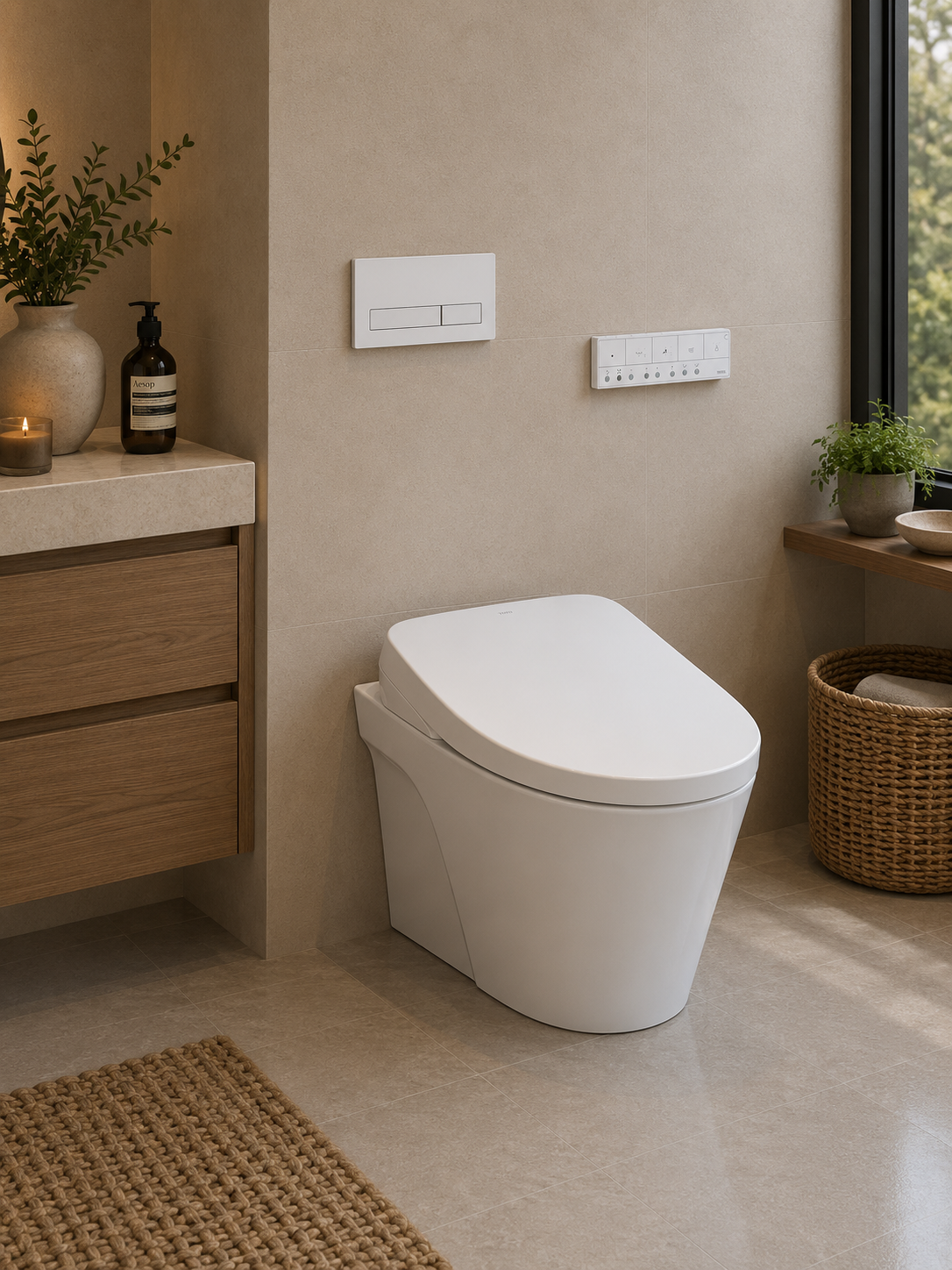

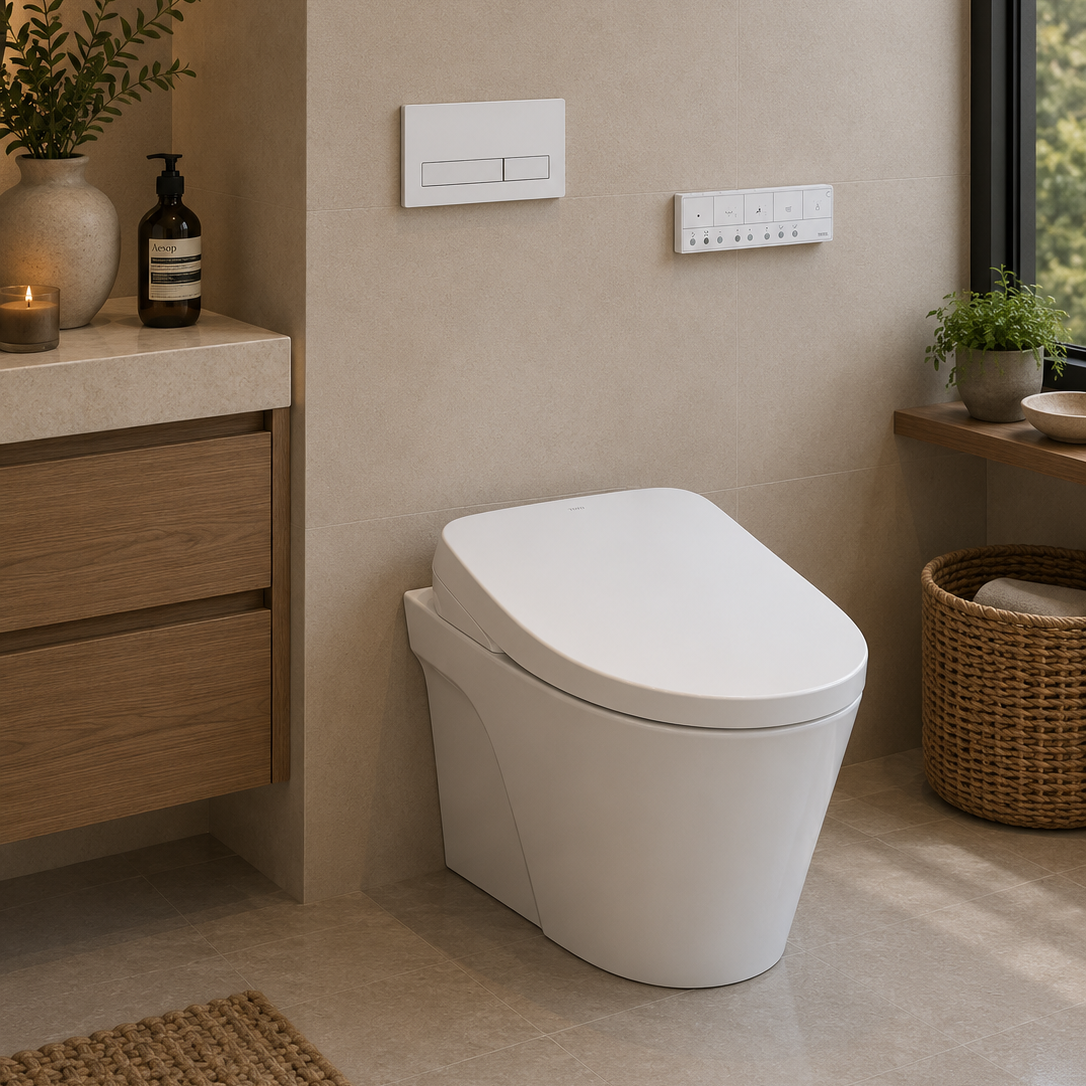

Toto AP Washlet+ S7 Wall-Hung Toilet

Description

TOTO AP WASHLET+ S7 Wall-Hung Toilet

Space-saving wall-hung design with TOTO’s advanced S7 cleansing experience

The TOTO AP WASHLET+ S7 Wall-Hung Toilet combines a sleek, floating toilet with the personalized comfort and advanced hygiene features of the S7 WASHLET. Its concealed DuoFit in-wall tank system opens up the floor and saves valuable bathroom space, while the skirted AP bowl, DYNAMAX TORNADO FLUSH, CEFIONTECT glaze, and integrated WASHLET+ connection create a clean, streamlined installation. Continuous warm-water cleansing, a heated seat, warm air dryer, deodorizer, four-user memory, and automatic bowl and wand-cleaning technologies make every visit feel cleaner and more comfortable.

Floating Design That Saves Space

• Wall-hung installation leaves the floor open for easier cleaning and a more spacious appearance
• Saves up to 9" of floor space compared with a standard floor-mounted toilet
• Adjustable mounting height from 15" to 19" for a more customized installation
• Universal Height and elongated bowl provide a comfortable seated position
• Skirted bowl creates a clean, contemporary silhouette
• Properly installed DuoFit carrier supports up to 880 lbs

Powerful, Water-Saving Dual Flush

• DYNAMAX TORNADO FLUSH uses a powerful 360-degree rinse to clean the bowl efficiently
• Dual-flush operation provides a choice of 1.28 GPF or 0.9 GPF
• Average flush volume of 1.03 GPF helps reduce overall water consumption
• CEFIONTECT ceramic glaze helps minimize waste from sticking to the bowl surface
• EPA WaterSense certified for efficient flushing performance
• Matte Silver Basic Round dual-button push plate included

Personalized S7 Washing & Drying

• Instantaneous water heater provides continuous warm water
• Rear, rear-soft, front, and wide-front cleansing options
• Adjustable spray position, water temperature, and water pressure
• Oscillating and pulsating spray modes for a more thorough cleanse
• Heated seat with adjustable temperature
• Warm air dryer with adjustable temperature settings
• Automatic air deodorizer helps keep the bathroom feeling fresher
• Multifunction remote with personalized memory settings for up to four users

Advanced Hygiene Before and After Every Use

• PREMIST automatically wets the bowl before use to help prevent waste from sticking
• EWATER+ automatically cleans the wand and helps clean the bowl after use
• Self-cleaning wand rinses itself inside and out before and after every use
• CLEAN RESIN helps keep the wand and seat cleaner and easier to maintain
• Seamless seat design eliminates the gap where dirt commonly collects
• Docking station allows the WASHLET to be removed more easily for cleaning

Everyday Comfort & Convenience

• SoftClose seat helps prevent sudden slamming
• Night light provides gentle illumination for nighttime use
• Auto energy saver helps reduce power consumption during periods of inactivity
• WASHLET+ connection kit helps conceal the water supply and power cord for a cleaner finished look

Specs & Installation Notes

• Model / SKU: CWT4264726CMFG#MS
• Includes: AP wall-hung toilet bowl, S7 WASHLET, DuoFit in-wall tank system, WASHLET connection kit, and Matte Silver Basic Round push plate
• Toilet bowl model: CT426CFGT40#01
• WASHLET model: SW4726AT40#01
• In-wall tank system: WT173M with copper supply line
• Connection kit: THU805
• Push plate: YT930#MS Matte Silver Basic Round Push Plate
• Installation: Wall-hung with concealed in-wall tank and carrier
• Bowl shape: Elongated
• Installation height: Adjustable from 15" to 19"
• Water use: Dual flush, 1.28 GPF / 0.9 GPF
• Average flush: 1.03 GPF
• Flush system: DYNAMAX TORNADO FLUSH
• Water surface: 5 1/2" x 4 1/8"
• Trap diameter: 2 1/8"
• Trap seal: 2 1/8"
• Material: Vitreous china bowl
• Finish: Cotton White toilet and WASHLET with Matte Silver push plate
• Carrier capacity: Up to 880 lbs when properly installed
• Electrical requirements: 120V, 60Hz GFCI-protected outlet
• Certifications / compliance: IAPMO/cUPC, EPA WaterSense, State of Massachusetts, City of Los Angeles, applicable UPC, IPC, NSPC and NPC Canada requirements, California AB715, California Green Building Code, and other listed standards
• WASHLET warranty: Two-year limited residential warranty or one-year limited commercial warranty
• Toilet and carrier warranty: One-year limited warranty
• Structural note: Adequate wall bracing is required. Framing must support an 880 lb load without damage to the wall.
• Wall panel note: TOTO recommends plywood with a minimum thickness of 1/2" for the wall panel.
• Framing note: Designed for commercial 2" x 6" wall installation. Residential 2" x 4" installation is available with the appropriate optional waste outlet kit.
