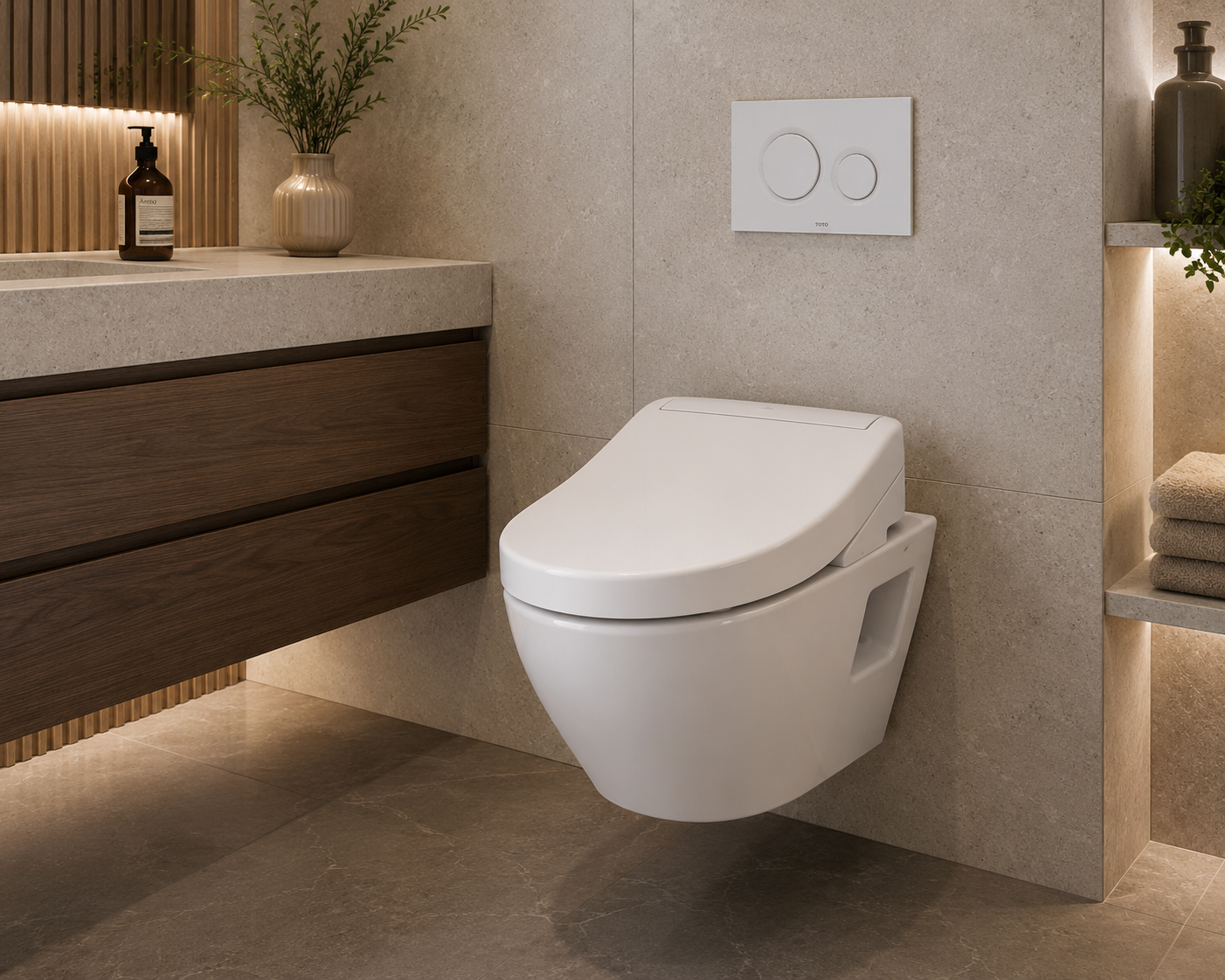

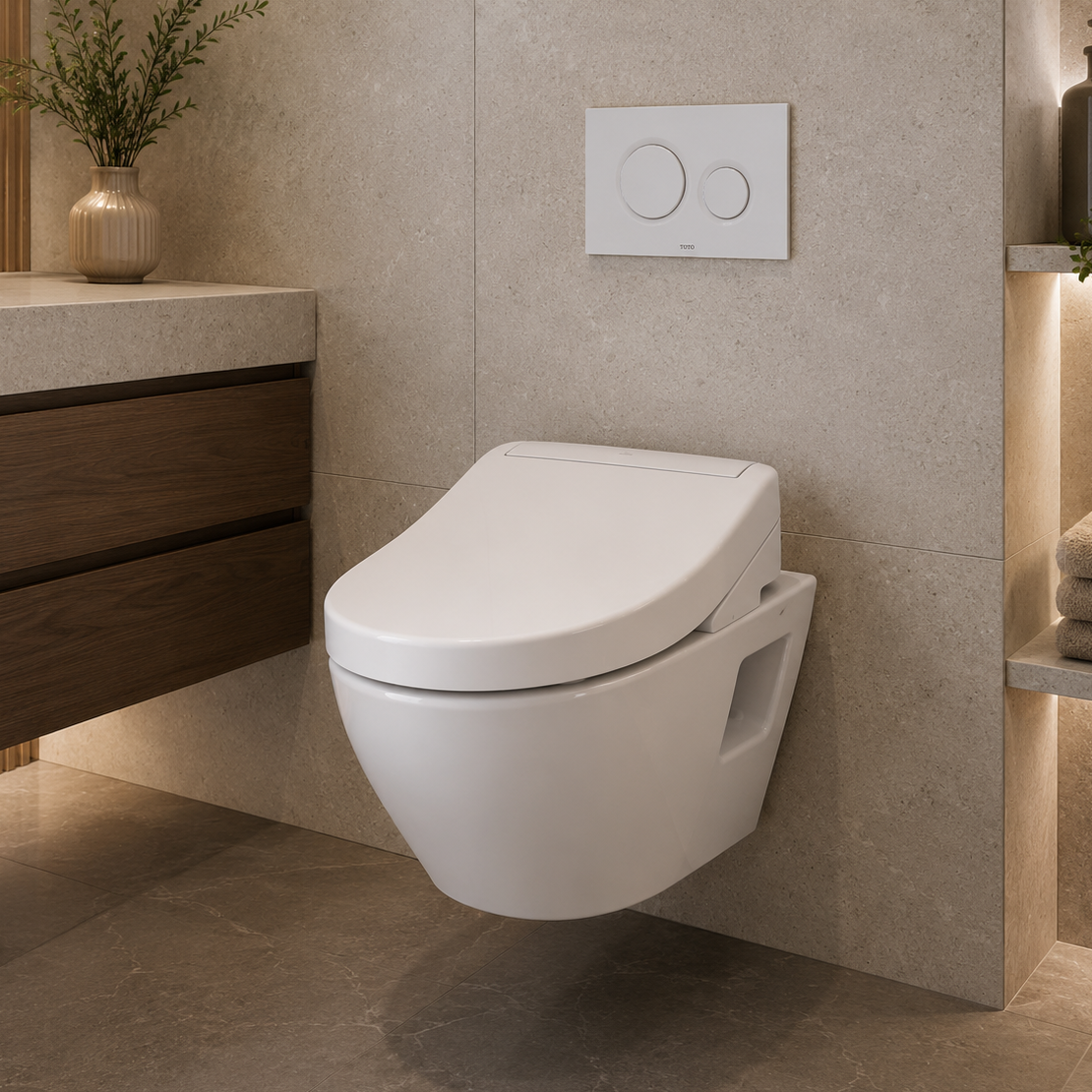

Toto EP Washlet+ S5 Wall-Hung Toilet

Description

TOTO EP WASHLET+ S5 Wall-Hung Toilet

A space-saving wall-hung toilet with TOTO’s advanced S5 cleansing comfort

The TOTO EP WASHLET+ S5 Wall-Hung Toilet combines a clean, floating wall-mounted design with the everyday comfort of the S5 WASHLET. Its DuoFit in-wall tank system helps free up floor space, while DYNAMAX TORNADO FLUSH, CEFIONTECT glaze, warm-water cleansing, a heated seat, warm air dryer, deodorizer, night light, and TOTO’s self-cleaning technologies work together to create a bathroom experience that feels cleaner, more comfortable, and easier to maintain.

Floating Design That Saves Space

• Wall-hung installation keeps the floor area open and easier to clean
• Saves up to 9" of floor space compared to a standard floor-mounted toilet
• Adjustable 15" to 19" mounting height for a more customized fit
• Universal Height elongated bowl for added comfort
• In-wall tank system creates a cleaner, more modern bathroom layout
• Properly installed carrier system supports up to 880 lbs

Dual-Flush Performance with a Cleaner Rinse

• DYNAMAX TORNADO FLUSH uses powerful 360-degree cleaning action to rinse the bowl efficiently
• Dual-flush operation lets you choose 1.28 GPF or 0.9 GPF
• Ultra high-efficiency performance with an average flush of 1.03 GPF
• CEFIONTECT ceramic glaze helps minimize waste from sticking to the bowl surface
• Matte Silver Basic Round Push Plate included

S5 WASHLET Comfort, Customized to You

• Instantaneous warm-water cleansing for continuous comfort
• Front, rear, and rear-soft wash options
• Adjustable spray position, water temperature, and water pressure
• Oscillating and pulsating spray settings for a more complete cleanse
• Heated seat with adjustable temperature
• Warm air dryer with adjustable temperature
• Automatic air deodorizer helps keep the bathroom feeling fresher
• Multifunction remote control with personalized memory settings for up to 4 users

Hygiene Features Before & After Every Use

• PREMIST automatically mists the bowl before each use to help reduce waste adhesion
• EWATER+ automatically cleans the wand after every use
• Self-cleaning wand rinses itself inside and out before and after every use
• CLEAN RESIN helps keep the wand and seat cleaner and easier to maintain
• CEFIONTECT smooth ceramic glaze helps the bowl rinse cleaner with every flush

Seamless WASHLET+ Integration

This WASHLET+ system is designed to pair the EP wall-hung bowl with the S5 WASHLET for a more finished, built-in look. The included WASHLET connection kit helps conceal the water supply and power cord, so the final installation looks cleaner than a standard add-on bidet seat.

Specs & Installation Notes

• Model / SKU: CWT4283446CMFG#MS
• Includes: EP wall-hung toilet bowl, S5 WASHLET, DuoFit in-wall tank system, WASHLET connection kit, and Matte Silver Basic Round Push Plate
• Toilet bowl model: CT428CFGT40#01
• WASHLET model: SW3446#01
• In-wall tank system: WT173M with copper supply line
• Connection kit: THU805
• Push plate: YT930#MS Matte Silver Basic Round Push Plate
• Installation: Wall-hung / in-wall tank
• Bowl shape: Elongated
• Height: Adjustable 15" to 19" installation height
• Water use: Dual flush 1.28 / 0.9 GPF
• Average flush: 1.03 GPF
• Flush system: DYNAMAX TORNADO FLUSH
• Minimum water pressure: 8 psi static
• Maximum water pressure: 108.75 psi static
• Water surface: 5 1/2" x 4 1/8"
• Trap diameter: 2 1/8"
• Trap seal: 2 1/8"
• Material: Vitreous china bowl; in-wall tank system uses various materials
• Finish: Cotton White bowl and WASHLET with Matte Silver push plate
• Shipping weight: Bowl: 68 lbs; WASHLET: 15.4 lbs; in-wall tank system: 44 lbs
• Shipping dimensions: Bowl: 22" L x 14.6" W x 16.5" H; WASHLET: 24 3/8" L x 17 9/16" W x 7 7/16" H; in-wall tank system: 47" L x 26 1/2" W x 5 3/4" H
• Certifications / compliance: IAPMO/cUPC, EPA WaterSense, State of Massachusetts, City of Los Angeles, UPC, IPC, NSPC, NPC Canada, California AB715, California Green Building Code, and City of Los Angeles Water Efficiency Ordinance
• Warranty: One-year limited warranty
• Electrical note: Requires a 120V GFCI outlet for the WASHLET
• Structural note: Adequate wall bracing is required. Framing support should be capable of supporting an 880 lb load without damage to the wall.
• Wall panel note: TOTO recommends plywood with a minimum thickness of 1/2" for the wall panel.
• Stud installation note: Designed for commercial 2" x 6" installation, with optional residential 2" x 4" wall stud installation using the appropriate waste outlet kit.
